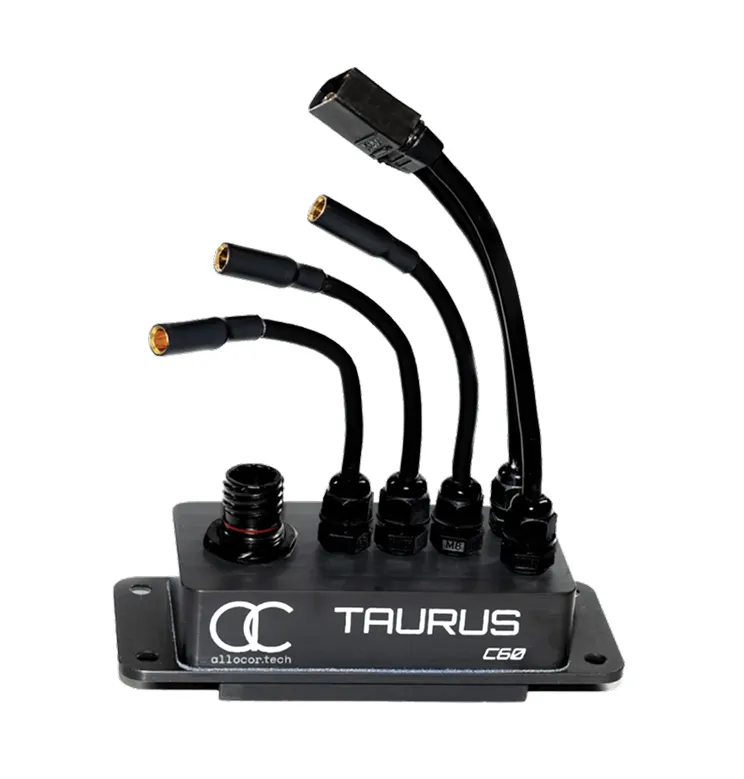

The Taurus C60 is a high power, high efficiency BLDC motor controller that speaks in more than just pulses! This controller implements full FOC/SVPWM for highly efficient operation up to 6kW peak power and provides isolated CAN 2.0 and RS-485 communications, giving you more feedback and control of your propulsion system. All of this in an IP67 package with robust connector interfaces.
Contact our top notch sales team to get all of your questions answered promptly!
Overview
The Taurus implements full four quadrant Field Oriented Control (FOC) through Space Vector Pulse Width Modulation (SVPWM) to achieve exceptional motor controller efficiency in the nominal operating range. The controller also supports overmodulation to maximize peak power output of the motor drive. The C60 variant of the Taurus design is designed for IP67, and the following key performance capabilities:
The Taurus supports various hardware interfaces for communication as well as commutation and alignment support. These interfaces can be used for simple comms, or configurations with pitch control servos, etc. The entire software stack for the Taurus is built on the available source licensed allocore SDK, allowing fully tailored applications for customer control, comms, and other needs.
Four quadrant control around a 40KHz current control loop allows custom fast closed-loop control on speed, torque, voltage, power, or other more advanced modes.
Fixed mapping sensorless open-loop PWM throttle based ESCs are a thing of the past. The Taurus motor controller enables customized control loops and tuning, along with bi-directional communications to give your system more advanced control and monitoring. Taurus adds in sensored motor capabilities for slow-speed and alignment/parking support.
Four quadrant control means the Taurus controller supports full regen capabilities. Not only does this mean active regenerative braking, but moreover, the Taurus C60 can be mated with a generator system to provide the basis of a hybrid electric powertrain.
The Taurus hardware IP has been tailored to various custom packages, including winglets, booms, etc. Additionally, implementations for lower voltage/power have also been realized. Contact allocortech to get more information on customization
Performance Specifications
12V – 52V
100A Peak
70A Continuous
40kHz Control
10,000RPM
12,000RPM
17,000RPM
Up to 1kHz
Communication
1x CAN 2.0
1x RS-485
Serial ports offer ±400V isolation voltage (when connected using the supplied floating-ground pin)
Physical
Aluminum: 250g
Length: 4.9 inches
Width: 2.0 inches
Height: 2.0 inches
M5 or #10 hardware, 36mm x 115mm square pattern
Document Number and Reference Title
Taurus C60 Electrical and Physical Interface Control Document (PDF)
YAPP Communications for Taurus Platform (PDF)
Part Numbers
Allocortech can quickly provide low-cost custom hardware designs, customized versions of existing products, and integrate new hardware into existing designs. Where needed, requirements, test cases, simulators, and hardware-in-the-loop environments can be created.
