Hornet

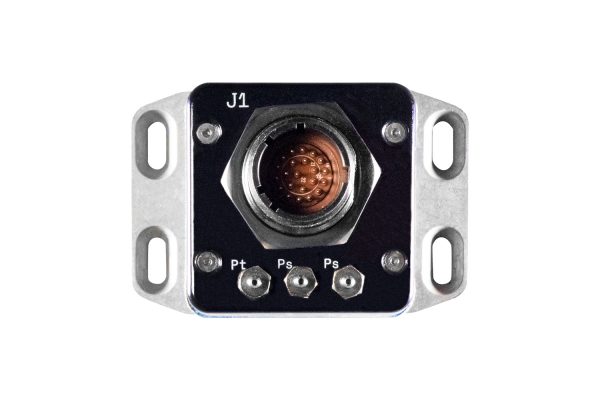

The Hornet ADAHRS offers a fully integrated sensor solution in a small, robust, affordable package.  Powered by an ARM® Cortex®-M4  processor, the Hornet boasts 32-bit, 180MHz performance with both DSP and FPU instructions, providing for real-time sensor data processing and reporting.  An open-platform C++ SDK allows the Hornet to be configured to your exact requirements.

Interface Control Document

Overview

The Hornet is an ADAHRS complete with differential and barometric pressure sensing, Outside Air Temperature (OAT), RTD, Angle-of-Attack (AoA), and Sideslip sensor interfaces.  It also includes dual magnetometers, dual accelerometers and dual gyros which complement each other with respect to dynamic performance and bias effects.

Place a Hornet at each of your pitot-static pressure sensor probes for redundant measurements and route wires, not more tubing.  Or place a Hornet in your wing-tips for magnetic measurements far from hard-iron effects.

The Hornet supports both CAN 2.0 and full-duplex RS-422 for flexible, robust telemetry options. External sensor support includes standard RTD as well as various Angle-of-Attack and Sideslip airdata boom sensors. 3-and-4 wire 100Ω RTDs are compatible with the temperature interface, while the air data boom inputs support analog voltage, frequency and PWM signaling.

Specifications

Electrical

Connector

D38999 24ZC35PN

Power

5 – 48V
1W typical, 1.6W max

Communications

CAN 2.0, 1Mbps Max Bitrate
RS-422 Full-Duplex, 1Mbps Max Bitrate

CPU

STMicro STM32F427II
180MHz 32-bit ARM® Cortex®-M4 with FPU
2MB Internal Flash
256KB Internal RAM

Sensors

Static Pressure

0 – 103.4kPa
24-bit resolution
±0.25% or 250Pa

Differential Pressure

±6kPa
24-bit resolution
±0.25% or 15Pa

Outside Air Temperature (OAT)

100Ω RTD
3-or-4 wire

Angle-of-Attack and Sideslip Inputs

DC: 0.5V-4.5V 12-bit
FM: 1Hz – 5kHz
PWM: >= 200µs

Accelerometer,
Magnetometer,
Rate Gyro

Contact us for details

Physical

Weight

125g

Dimensions

Length: 3.0 inches
Width: 2.0 inches
Height: 2.0 inches

Mounting

4x 0.150″ x 0.405″ countersunk slots

Custom base plates for mounting and electrical bonding are available upon request.

Environmental

allocortech products are designed to meet, but may not be formally qualified to, various DO-160 criteria. Please contact us for more information, including any test lab certification.

Ingress

IP64

Temperature

Operating: -40 to +70°C

Altitude

-5k ~ 40k Feet Mean Sea Level

Corrosion

Chromate passivized aluminum enclosure, 168+ hours salt fog resistance.
Black zinc nickel coated connectors, 500+ hours salt fog resistance.

  • 100-0045-001
